16006 Deep Groove Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | 16006 |
| Category | Single Row Deep Groove Ball Bearings |
| Brand | JMP® |
| Bore Diameter | 30.0000 mm |
| Outer Diameter | 55.0000 mm |
| Width | 9.0000 mm |
| Bore Tolerance | -0.01mm to 0 |
| Outer Tolerance | -0.013mm to 0 |
| Width Tolerance | -0.120mm to 0 |
| Chamfer Dimension | 1.00 mm |
| Dynamic Radial Load | 2,068 lbf |
| Static Radial Load | 1,416 lbf |
| Construction | Single Row |
| Seal Type | Open |
| Bearing Type | Ball |
| Load Direction | Radial |
| System of Measurement | Metric |
| Ring Material | Chrome Steel |
| Ball / Roller Material | Chrome Steel |
| Cage Material | Chrome Steel |
| Reference Speed | 10,000 rpm |
| Limiting Speed (Grease) | 10,000 rpm |
| Limiting Speed (Oil) | — |
| Radial Clearance | CN |
| Tolerance Class | ABEC-1 |
| Bore Tolerance | -0.01mm to 0 |
| Outer Ring Tolerance | -0.013mm to 0 |
| Width Tolerance | -0.120mm to 0 |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 80.0000 g |

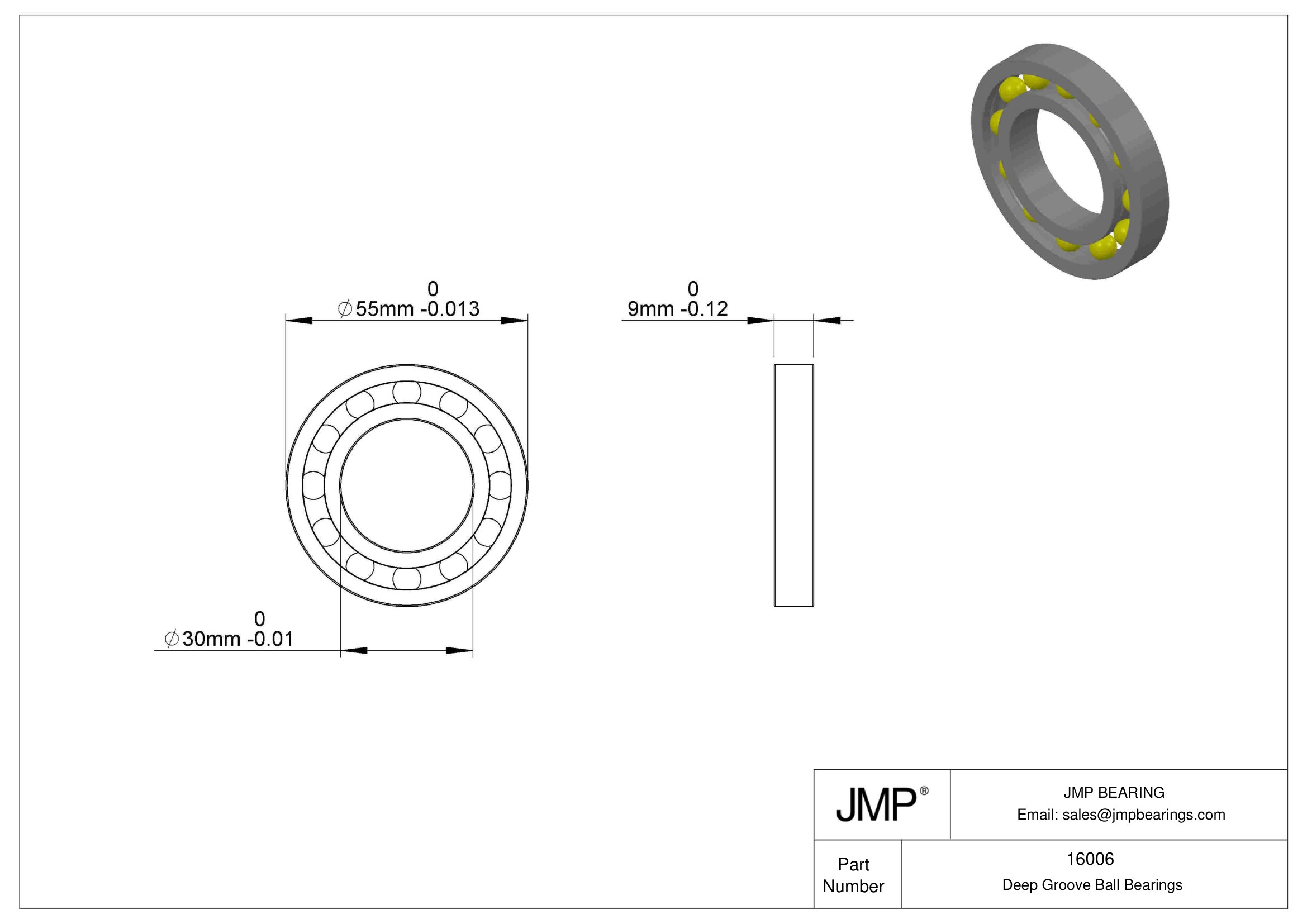

The 16006 is a high-quality Deep Groove Ball Bearing with bore diameter of 30.0000 mm, outer diameter of 55.0000 mm, and width of 9.0000 mm.
With a dynamic radial load rating of 2,068 lbf and static load rating of 1,416 lbf, the 16006 is engineered to handle demanding operating conditions. It supports speeds up to 10,000 rpm, making it suitable for high-speed applications.
- High load-carrying capacity (2,068 lbf dynamic) for extended service life
- Optimized operating speed for stable performance
- Open design for easy relubrication and low friction operation
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The 16006 is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the 16006 in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The 16006 typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard 16006 applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
