207S-HNCR-HYB Deep Groove Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | 207S-HNCR-HYB |
| Category | Stainless Steel Deep Groove Ball Bearings |
| Brand | JMP® |
| Interchangeable With | SKF |
| Bore Diameter | 35.0000 mm |
| Outer Diameter | 72.0000 mm |
| Width | 17.0000 mm |
| Bore Tolerance | -0.012mm to 0 |
| Outer Tolerance | -0.013mm to 0 |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 1.10 mm |
| Construction | Single Row |
| Seal Type | Open |
| Bearing Type | Ball |
| Load Direction | Radial |
| System of Measurement | Metric |
| Ring Material | Stainless Steel |
| Ball / Roller Material | Ceramic Ball (silicon nitride) |
| Cage Material | Stainless Steel |
| Limiting Speed (Grease) | — |
| Limiting Speed (Oil) | — |
| Radial Clearance | CN |
| Tolerance Class | ABEC 1 | ISO P0 |
| Bore Tolerance | -0.012mm to 0 |
| Outer Ring Tolerance | -0.013mm to 0 |
| Width Tolerance | -0.12mm to 0 |
| Temperature Range | -30°to 120 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.4500 g |
| Brand | Equivalent |
|---|---|
| SKF | 207S-HNCR-HYB |

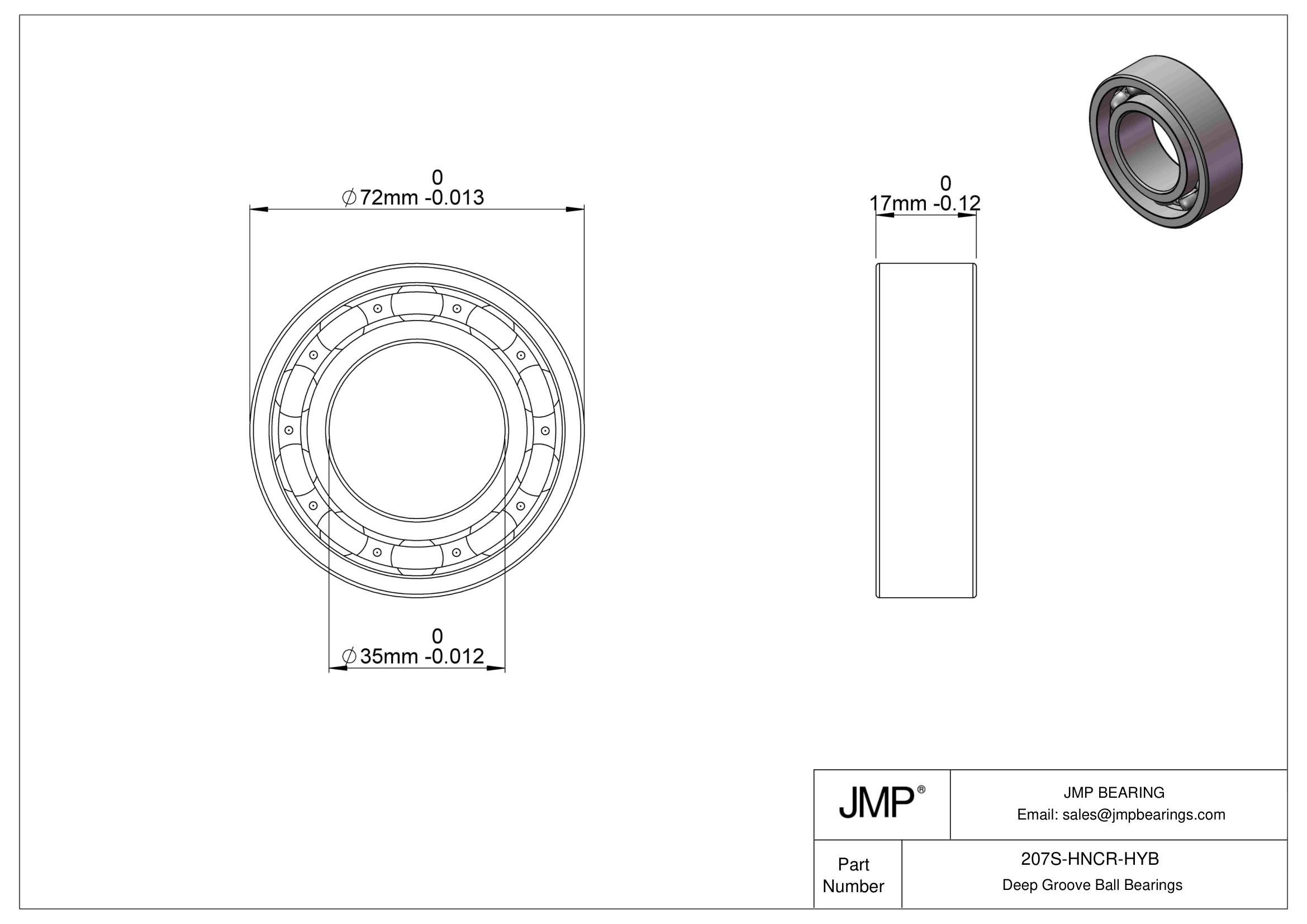

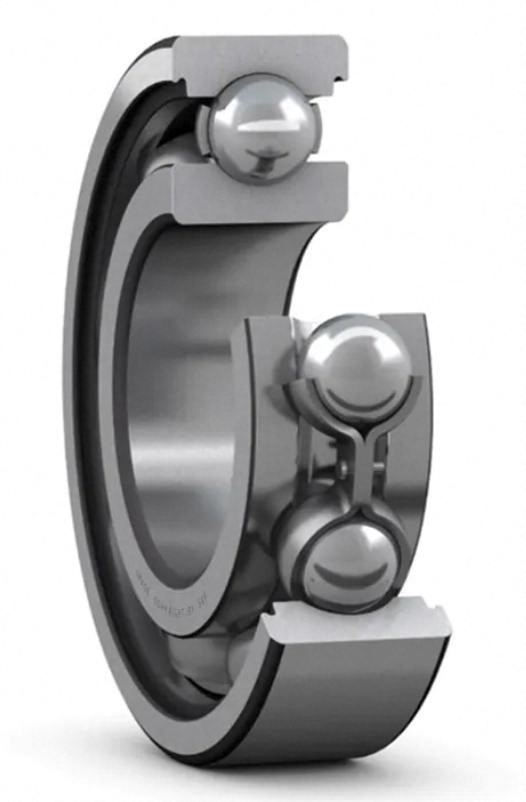

The 207S-HNCR-HYB is a high-quality Deep Groove Ball Bearing with bore diameter of 35.0000 mm, outer diameter of 72.0000 mm, and width of 17.0000 mm.
Designed primarily for radial loads, this bearing delivers reliable performance in various industrial applications.
- Reliable load capacity for general industrial applications
- Optimized operating speed for stable performance
- Open design for easy relubrication and low friction operation
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The 207S-HNCR-HYB is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the 207S-HNCR-HYB in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The 207S-HNCR-HYB typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard 207S-HNCR-HYB applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
