468431 Deep Groove Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | 468431 |
| Category | Single Row General |
| Brand | JMP® |
| Interchangeable With | SKF |

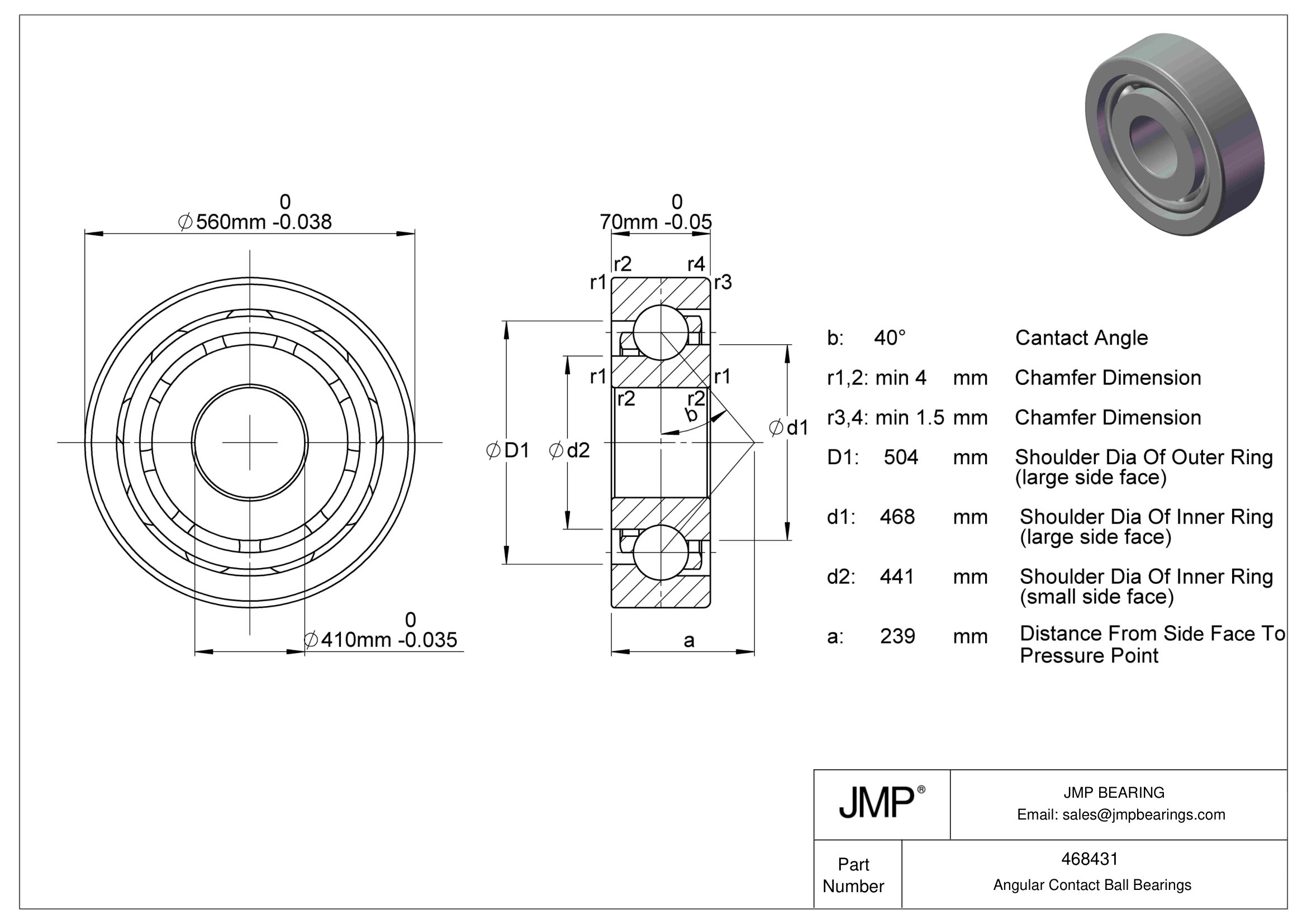

| Bore Diameter | 410.0000 mm |
| Outer Diameter | 560.0000 mm |
| Width | 70.0000 mm |
| Bore Tolerance | -0.035mm to 0 |
| Outer Tolerance | -0.038mm to 0 |
| Width Tolerance | -0.05mm to 0 |
| Chamfer Dimension | 4.0 mm |
| Dynamic Radial Load | 423 lbf |
| Static Radial Load | 831 lbf |
| Construction | Single Row |
| Seal Type | Open |
| Contact Angle | 40.00 |
| Bearing Type | Ball |
| Load Direction | Angular Contact |
| System of Measurement | Metric |
| Ring Material | Chrome Steel |
| Ball / Roller Material | Chrome Steel |
| Cage Material | Nylon |
| Reference Speed | 1,100 rpm |
| Limiting Speed (Grease) | 1,000 rpm |
| Limiting Speed (Oil) | — |
| Tolerance Class | P6 (ABEC-3) |
| Bore Tolerance | -0.035mm to 0 |
| Outer Ring Tolerance | -0.038mm to 0 |
| Width Tolerance | -0.05mm to 0 |
| Temperature Range | -30° to 110 °C |
| Max Temperature | 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 49.5000 g |
| Lubrication | Lubricated |
| Brand | Equivalent |
|---|---|
| SKF | 468431 |
The 468431 is a high-quality Deep Groove Ball Bearing with bore diameter of 410.0000 mm, outer diameter of 560.0000 mm, and width of 70.0000 mm.
With a dynamic radial load rating of 423 lbf and static load rating of 831 lbf, the 468431 is engineered to handle demanding operating conditions. It supports speeds up to 1,000 rpm, making it suitable for high-speed applications.
- Reliable load capacity for general industrial applications
- Optimized operating speed for stable performance
- Open design for easy relubrication and low friction operation
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The 468431 is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the 468431 in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The 468431 typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard 468431 applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
