53211+U211 Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | 53211+U211 |
| Category | Thrust Ball Bearing With W Self Aligning |
| Brand | JMP® |
| Interchangeable With | NB |
| Bore Diameter | 55.0000 mm |
| Outer Diameter | 90.0000 mm |
| Width | 27.3000 mm |
| Chamfer Dimension | 1.50 mm |
| Dynamic Radial Load | 70,000 lbf |
| Static Radial Load | 159,000 lbf |
| Seal Type | Open |
| Load Direction | Radial |
| Cage Material | Chrome Steel |
| Limiting Speed (Grease) | 2,200 rpm |
| Limiting Speed (Oil) | — |
| Brand | Equivalent |
|---|---|
| NB | 53211+U211 |

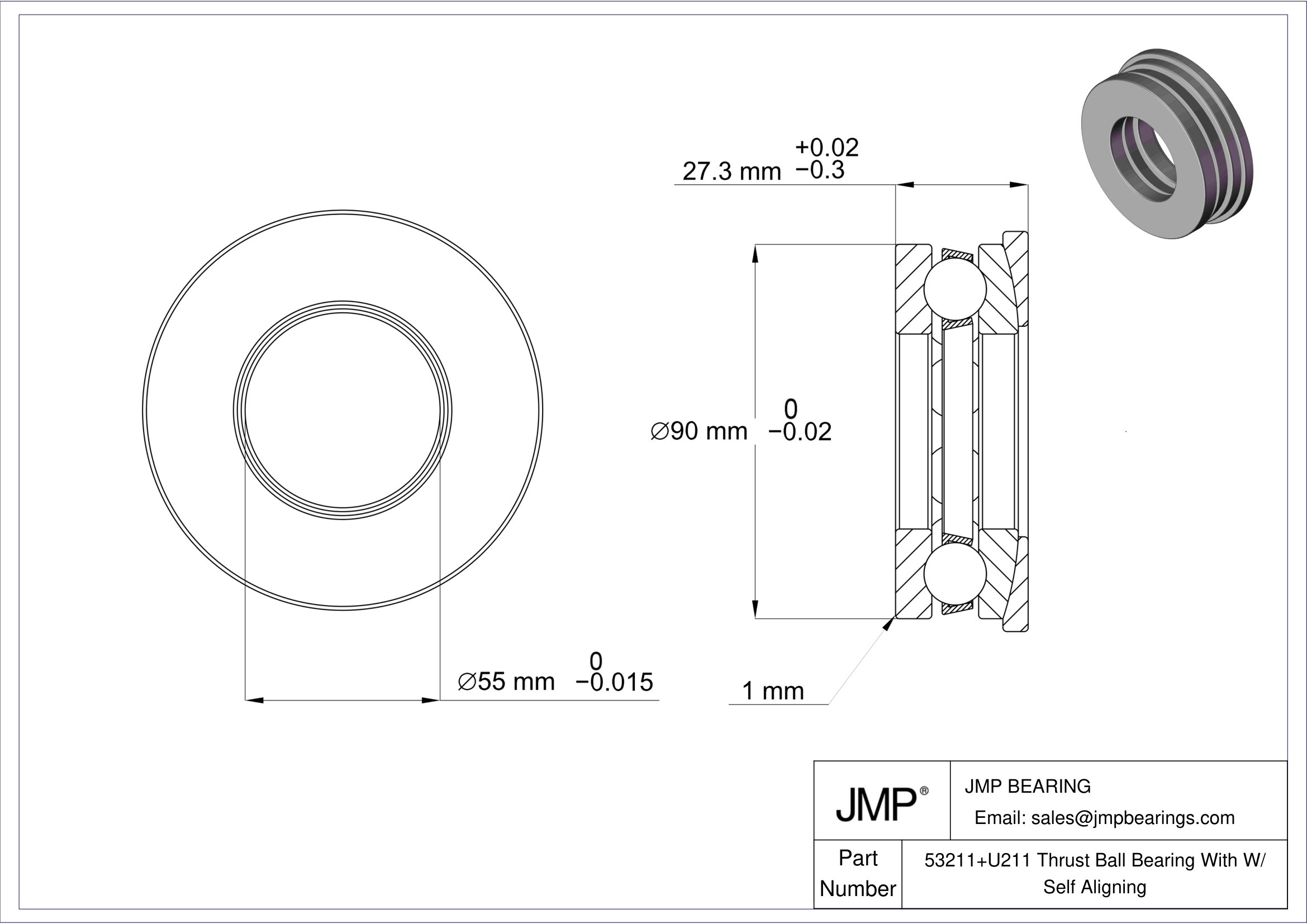

The 53211+U211 is a high-quality Ball Bearing with bore diameter of 55.0000 mm, outer diameter of 90.0000 mm, and width of 27.3000 mm.
With a dynamic radial load rating of 70,000 lbf and static load rating of 159,000 lbf, the 53211+U211 is engineered to handle demanding operating conditions. It supports speeds up to 2,200 rpm, making it suitable for high-speed applications.
- High load-carrying capacity (70,000 lbf dynamic) for extended service life
- High-speed capability up to 2,200 rpm for versatile operation
- Open design for easy relubrication and low friction operation
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The 53211+U211 is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the 53211+U211 in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The 53211+U211 typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard 53211+U211 applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
