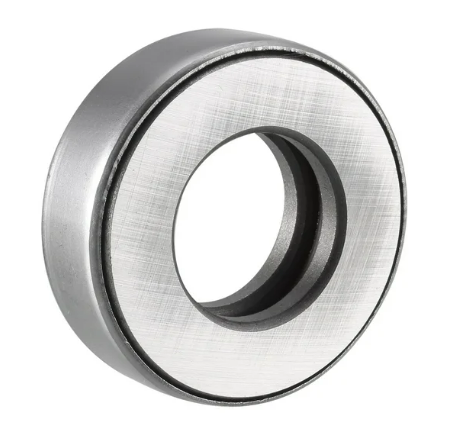

B12 Thrust Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | B12 |
| Category | Thrust Ball Bearing With Outside Band |
| Brand | JMP® |
| Interchangeable With | INA, NTN, HRB, FAG |
| Bore Diameter | 1.1880 in |
| Outer Diameter | 2.0940 in |
| Width | 0.7500 in |
| Bore Tolerance | +0.001" to +0.003" |
| Outer Tolerance | -0.015" to +0.015" |
| Width Tolerance | -0.005" to +0.005" |
| Chamfer Dimension | 0.15 mm |
| Dynamic Thrust Load | 8800.0 |
| Static Thrust Load | 16300.0 |
| Bearing Type | Ball |
| Load Direction | Thrust |
| System of Measurement | Inch |
| Housing Washer ID | 1.0000 |
| Ring Material | 52100 Chrome Steel |
| Ball / Roller Material | 52100 Chrome Steel |
| Temperature Range | -30° to 110 °C |
| Max Temperature | 110 °C |
| Reference Speed | 3,700 rpm |
| Limiting Speed (Grease) | 4,000 rpm |
| Limiting Speed (Oil) | 3,700 rpm |
| Bore Tolerance | +0.001" to +0.003" |
| Outer Ring Tolerance | -0.015" to +0.015" |
| Width Tolerance | -0.005" to +0.005" |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.1800 g |
Drawing not available — Request specs
| Brand | Equivalent |
|---|---|
| INA | B12 |
| NTN | B12 |
| HRB | B12 |
| FAG | B12 |
The B12 is a high-quality Thrust Ball Bearing with bore diameter of 1.1880 mm, outer diameter of 2.0940 mm, and width of 0.7500 mm.
With a dynamic radial load rating of 8,800 lbf and static load rating of 16,300 lbf, the B12 is engineered to handle demanding operating conditions. It supports speeds up to 4,000 rpm, making it suitable for high-speed applications.
- High load-carrying capacity (8,800 lbf dynamic) for extended service life
- Optimized operating speed for stable performance
- Open design for easy relubrication and low friction operation
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The B12 is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the B12 in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The B12 typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard B12 applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
