D/W R1-2Z Deep Groove Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | D/W R1-2Z |
| Category | Stainless Steel Deep Groove Ball Bearings |
| Brand | JMP® |
| Interchangeable With | SKF |

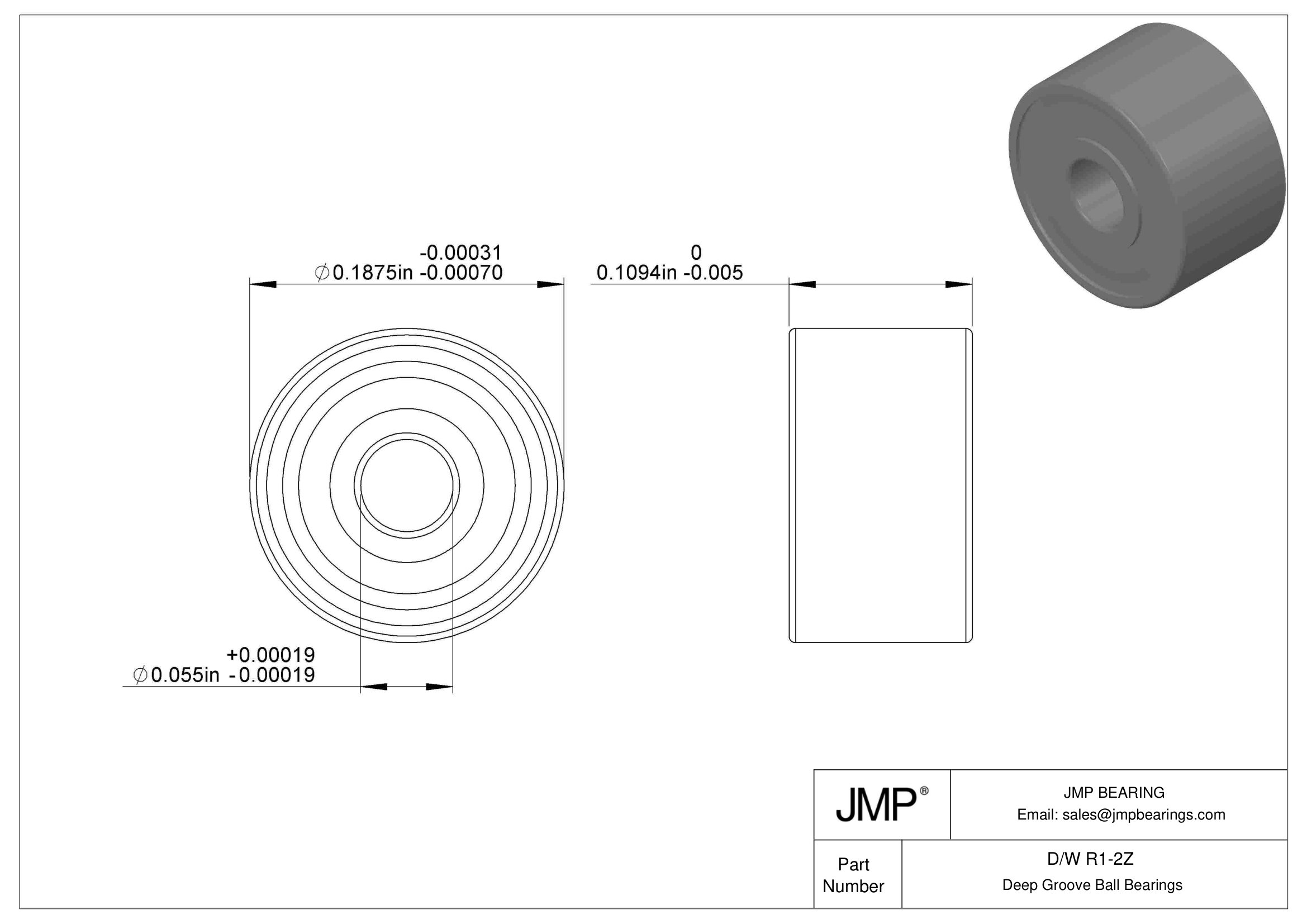

| Bore Diameter | 0.0550 in |
| Outer Diameter | 0.1875 in |
| Width | 0.1094 in |
| Bore Tolerance | -0.00019" to 0.00019" |
| Outer Tolerance | -0.0007" to -0.00031" |
| Width Tolerance | -0.005" to 0" |
| Chamfer Dimension | 0.15 mm |
| Dynamic Radial Load | 30 lbf |
| Static Radial Load | 8 lbf |
| Construction | Single Row |
| Seal Type | Shielded |
| Bearing Type | Ball |
| Load Direction | Radial |
| System of Measurement | Inch |
| Ring Material | Stainless Steel |
| Ball / Roller Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Reference Speed | 100,000 rpm |
| Limiting Speed (Grease) | 100,000 rpm |
| Limiting Speed (Oil) | — |
| Radial Clearance | CN |
| Tolerance Class | P0 |
| Bore Tolerance | -0.00019" to 0.00019" |
| Outer Ring Tolerance | -0.0007" to -0.00031" |
| Width Tolerance | -0.005" to 0" |
| Temperature Range | -30° to 120 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.0002 g |
| Brand | Equivalent |
|---|---|
| SKF | D/W R1-2Z |
The D/W R1-2Z is a high-quality Deep Groove Ball Bearing with bore diameter of 0.0550 mm, outer diameter of 0.1875 mm, and width of 0.1094 mm.
Equipped with Shielded sealing, the D/W R1-2Z bearing offers effective protection against dust and moisture while retaining internal lubricant, reducing maintenance requirements.
With a dynamic radial load rating of 30 lbf and static load rating of 8 lbf, the D/W R1-2Z is engineered to handle demanding operating conditions. It supports speeds up to 100,000 rpm, making it suitable for high-speed applications.
- Reliable load capacity for general industrial applications
- High-speed capability up to 100,000 rpm for versatile operation
- Shielded sealing for reduced maintenance and longer bearing life
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The D/W R1-2Z is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the D/W R1-2Z in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The D/W R1-2Z typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard D/W R1-2Z applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
