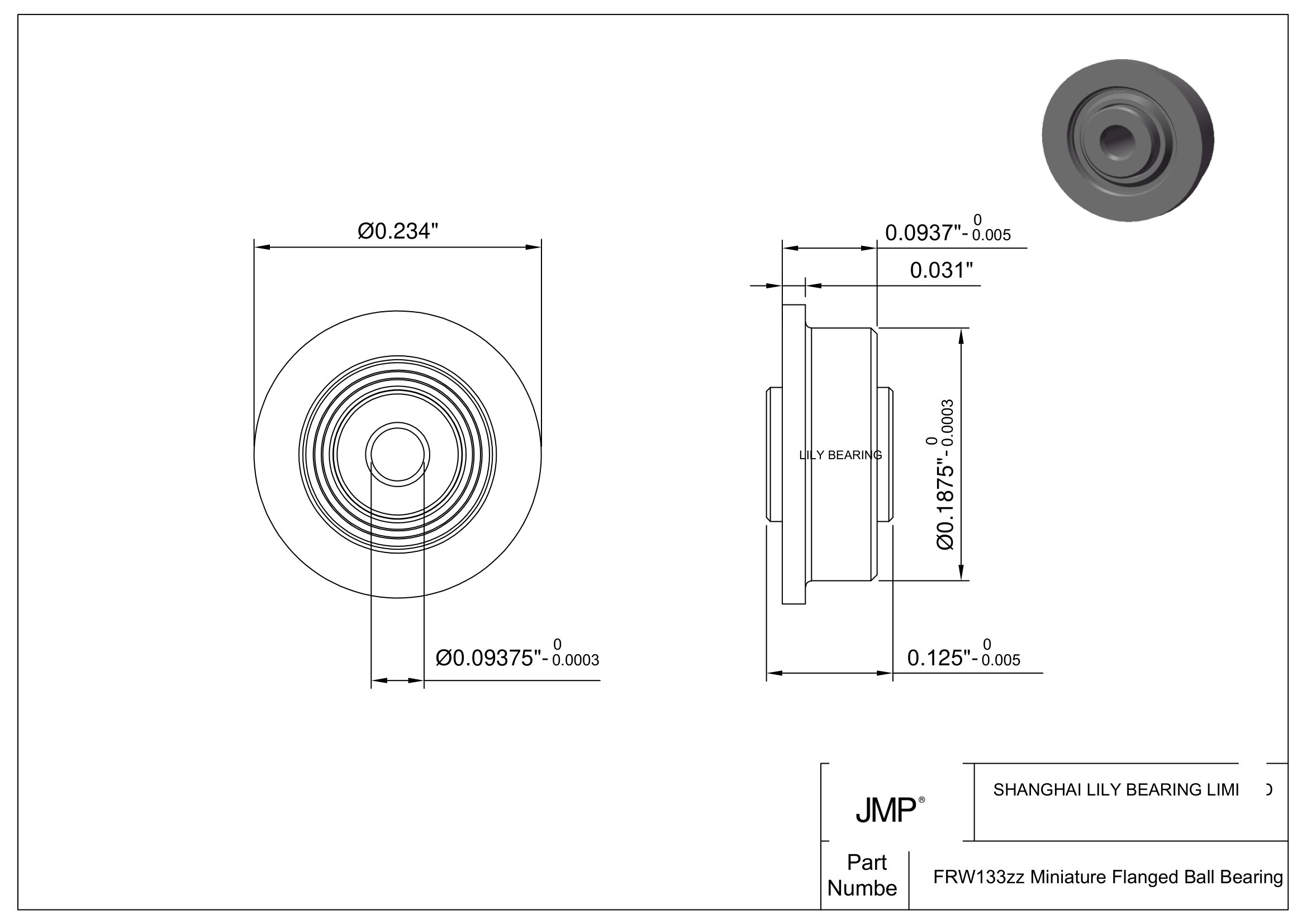

FRW133zz Deep Groove Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | FRW133zz |
| Category | Miniature Flanged Ball Bearings With Extended Inner Ring |
| Brand | JMP® |
| Interchangeable With | INA, NTN, HRB |
| Bore Diameter | 0.0938 in |
| Outer Diameter | 0.1875 in |
| Width | 0.0937 in |
| Bore Tolerance | -0.0003" to 0" |
| Outer Tolerance | -0.0003" to 0" |
| Width Tolerance | -0.005" to 0" |
| Chamfer Dimension | 0.15 mm |
| Dynamic Radial Load | 28 lbf |
| Static Radial Load | 10 lbf |
| Construction | Single Row |
| Seal Type | Shielded |
| Bearing Type | Ball |
| Load Direction | Radial |
| System of Measurement | Inch |
| Ring Material | Chrome Steel |
| Ball / Roller Material | Chrome Steel |
| Cage Material | Stainless Steel |
| Ball Diameter | 0.0236 |
| Ball Quantity | 10 |
| Reference Speed | 80,000 rpm |
| Limiting Speed (Grease) | 80,000 rpm |
| Limiting Speed (Oil) | — |
| Radial Clearance | MC3 |
| Tolerance Class | ABEC1 |
| Bore Tolerance | -0.0003" to 0" |
| Outer Ring Tolerance | -0.0003" to 0" |
| Width Tolerance | -0.005" to 0" |
| Temperature Range | -86 to 230 °F |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.2100 g |
| Brand | Equivalent |
|---|---|
| INA | FRW133zz |
| NTN | FRW133zz |
| HRB | FRW133zz |
The FRW133zz is a high-quality Deep Groove Ball Bearing with bore diameter of 0.0938 mm, outer diameter of 0.1875 mm, and width of 0.0937 mm.
Equipped with Shielded sealing, the FRW133zz bearing offers effective protection against dust and moisture while retaining internal lubricant, reducing maintenance requirements.
With a dynamic radial load rating of 28 lbf and static load rating of 10 lbf, the FRW133zz is engineered to handle demanding operating conditions. It supports speeds up to 80,000 rpm, making it suitable for high-speed applications.
- Reliable load capacity for general industrial applications
- High-speed capability up to 80,000 rpm for versatile operation
- Shielded sealing for reduced maintenance and longer bearing life
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The FRW133zz is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the FRW133zz in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The FRW133zz typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard FRW133zz applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
