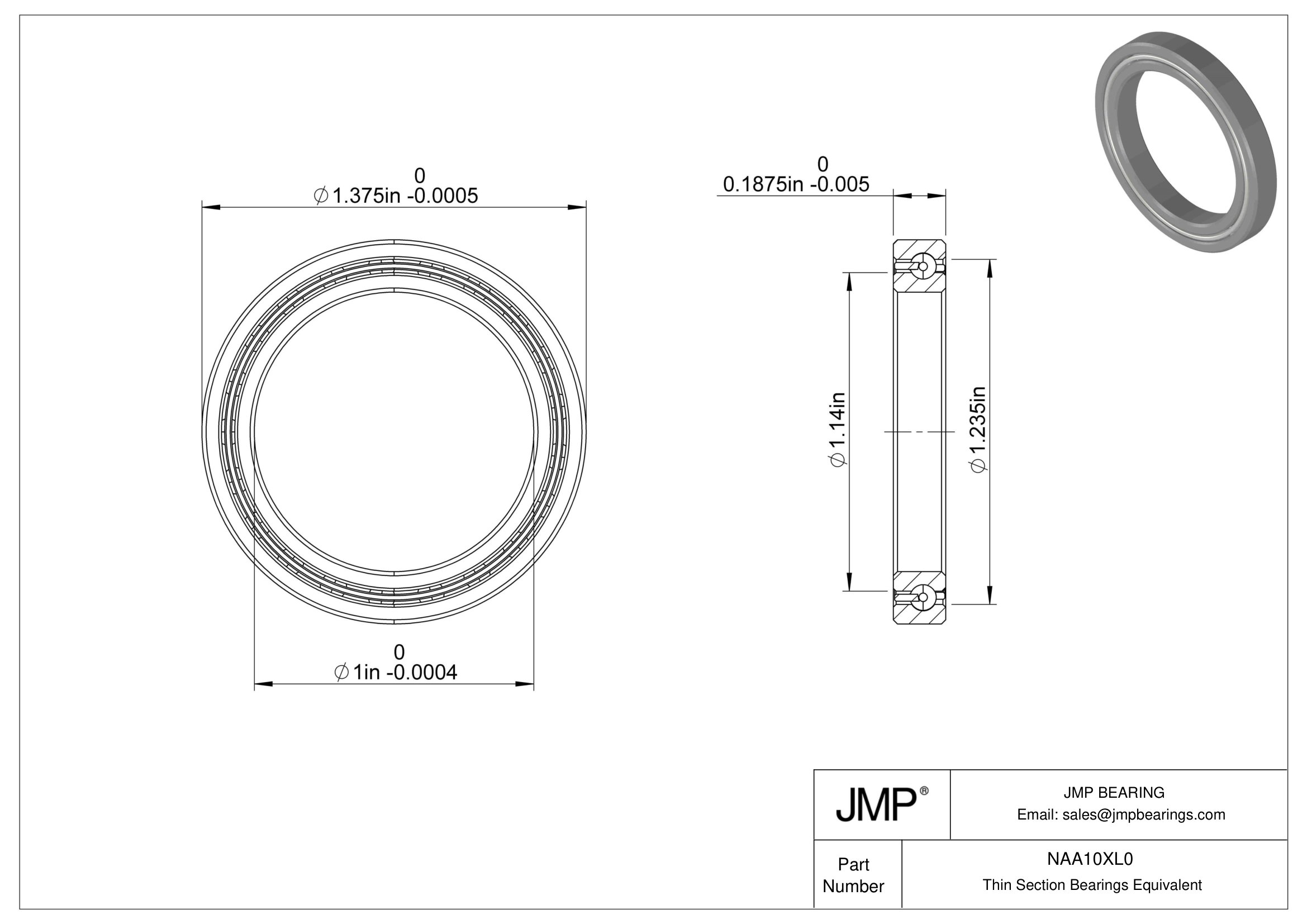

NAA10XL0 Deep Groove Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | NAA10XL0 |
| Category | Constant Section Cs Bearings |
| Brand | JMP® |
| Interchangeable With | INA, NTN, HRB, FAG |
| Bore Diameter | 1.0000 in |
| Outer Diameter | 1.3750 in |
| Width | 0.1875 in |
| Bore Tolerance | -0.0004"– 0" |
| Outer Tolerance | -0.0005"– 0" |
| Width Tolerance | -.005"- 0" |
| Chamfer Dimension | 0.15 mm |
| Dynamic Radial Load | 247 lbf |
| Static Radial Load | 290 lbf |
| Dynamic Thrust Load | 370.0 |
| Static Thrust Load | 730.0 |
| Construction | Single Row |
| Seal Type | Open |
| Bearing Type | Ball |
| Load Direction | Four Point Contact |
| System of Measurement | Inch |
| Ring Material | Chrome Steel |
| Ball / Roller Material | Chrome Steel |
| Cage Material | Nylon |
| Limiting Speed (Grease) | — |
| Limiting Speed (Oil) | — |
| Tolerance Class | ABEC-1 |
| Bore Tolerance | -0.0004"– 0" |
| Outer Ring Tolerance | -0.0005"– 0" |
| Width Tolerance | -.005"- 0" |
| Temperature Range | -30°C to 110 °C |
| RoHS | Compliant |
| Weight | 0.0260 g |
| Brand | Equivalent |
|---|---|
| INA | NAA10XL0 |
| NTN | NAA10XL0 |
| HRB | NAA10XL0 |
| FAG | NAA10XL0 |
The NAA10XL0 is a high-quality Deep Groove Ball Bearing with bore diameter of 1.0000 mm, outer diameter of 1.3750 mm, and width of 0.1875 mm.
With a dynamic radial load rating of 247 lbf and static load rating of 290 lbf, the NAA10XL0 is engineered to handle demanding operating conditions.
- Reliable load capacity for general industrial applications
- Optimized operating speed for stable performance
- Open design for easy relubrication and low friction operation
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The NAA10XL0 is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the NAA10XL0 in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The NAA10XL0 typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard NAA10XL0 applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
