S68/0.6 Ball Bearing
Searching for the best price?
Complete the inquiry form, we'll provide the most suitable solution.
Request Quote| Part Number | S68/0.6 |
| Category | Metric Size Standard Miniature Ball Bearings |
| Brand | JMP® |
| Interchangeable With | INA, NTN, HRB, FAG |
| Bore Diameter | 0.6000 mm |
| Outer Diameter | 2.5000 mm |
| Width | 1.0000 mm |
| Bore Tolerance | -0.008mm to 0 |
| Outer Tolerance | -0.008mm to 0 |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.15 mm |
| Dynamic Radial Load | 12 lbf |
| Static Radial Load | 3 lbf |
| Construction | Single Row |
| Seal Type | Open |
| Load Direction | Radial |
| Ball / Roller Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Ball Diameter | 0.5000 |
| Ball Quantity | 5 |
| Limiting Speed (Grease) | 128,000 rpm |
| Limiting Speed (Oil) | — |
| Radial Clearance | MC3 |
| Tolerance Class | ABEC1 |
| Bore Tolerance | -0.008mm to 0 |
| Outer Ring Tolerance | -0.008mm to 0 |
| Width Tolerance | -0.12mm to 0 |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.0200 g |
| Brand | Equivalent |
|---|---|
| INA | S68/0.6 |
| NTN | S68/0.6 |
| HRB | S68/0.6 |
| FAG | S68/0.6 |

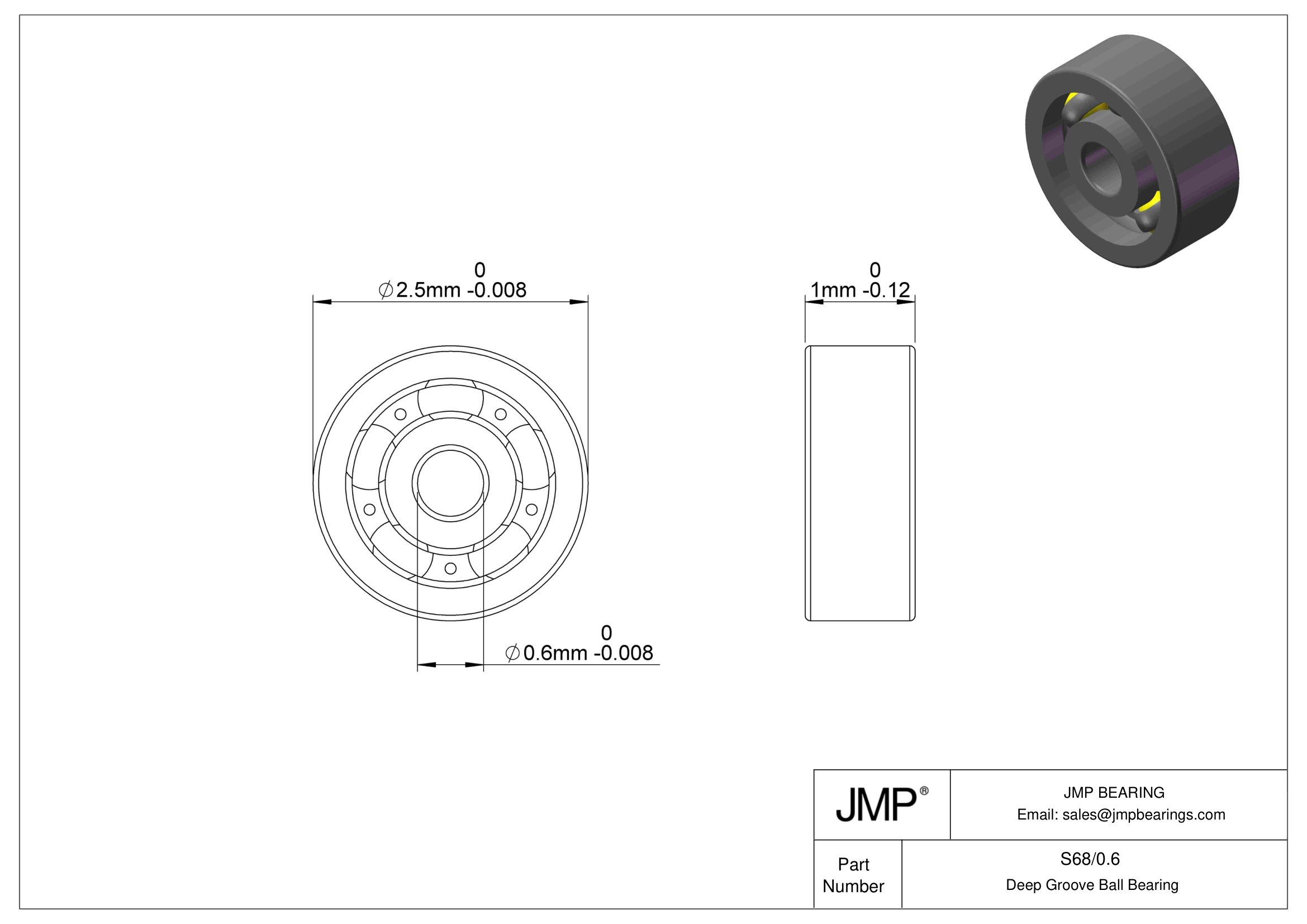

The S68/0.6 is a high-quality Ball Bearing with bore diameter of 0.6000 mm, outer diameter of 2.5000 mm, and width of 1.0000 mm.
With a dynamic radial load rating of 12 lbf and static load rating of 3 lbf, the S68/0.6 is engineered to handle demanding operating conditions. It supports speeds up to 128,000 rpm, making it suitable for high-speed applications.
- Reliable load capacity for general industrial applications
- High-speed capability up to 128,000 rpm for versatile operation
- Open design for easy relubrication and low friction operation
- Precision manufacturing to ISO standards ensures consistent quality
- Fully interchangeable with major international brands (SKF, NSK, FAG, NTN)
The S68/0.6 is available in Open (no seal), ZZ (metal shield), and 2RS (rubber seal) configurations. Open bearings offer higher speed ratings and lower friction, while sealed versions provide better contamination protection and reduced maintenance requirements.
JMP Bearings manufactures the S68/0.6 in various tolerance classes including ABEC-1 (standard), ABEC-3, ABEC-5 (precision), and ABEC-7 (high precision). Please contact us for specific tolerance class availability and pricing.
The S68/0.6 typically uses lithium-based grease (e.g., ISO VG 68) for general applications. For high-temperature or high-speed applications, synthetic greases such as polyurea-based lubricants are recommended. Contact our engineering team for application-specific lubrication guidance.
JMP Bearings offers flexible ordering - sample quantities are available from 1 piece. For bulk orders, we provide tiered pricing starting at 100, 500, and 1000+ pieces. Contact us for a custom quote tailored to your volume.
For standard S68/0.6 applications, shaft tolerance is typically k5 or j6, and housing tolerance is typically H7 or J6. Exact tolerance selections depend on load conditions, speed, and operating temperature. Refer to ISO 286 or consult our engineering support for detailed recommendations.
